ART IN IRAN xii. IRANIAN PRE-ISLAMIC ELEMENTS IN ISLAMIC ART



ART IN IRAN

xii. IRANIAN PRE-ISLAMIC ELEMENTS IN ISLAMIC ART

Numerous Iranian pre-Islamic elements have contributed significantly to the formation and development of Islamic art, and they can be easily recognized in various contexts, from town-planning to architecture, from the continuity of techniques of both manufacture and decoration to iconography and some of its symbols. Among the latter, one may mention the Sasanian crowns illustrated in the mosaic of the Dome of the Rock in Jerusalem (dated 691), or the interesting image on the reverse of an Arab-Sasanian dirham of 694-99, preserved in four examples (Treadwell, n. 95) and showing a lance within an arch. The lance “was one of the formal symbols of the Prophetic and caliphal power” (Grabar, p. 94; see also Whelan, n. 77), and when placed within an arch, it also represented an axis mundi connecting the earth to the sky, in the sense of the vault of heaven (see Fontana, forthcoming).

The most striking example of such town-planning is the round city of Baghdad, the ʿAbbasid capital founded by caliph Abu Jaʿfar al-Manṣur in 762. This circular plan, originally derived most probably from the structure of Assyrian military camps (circular or oval enclosures), was a characteristic feature of major Parthian and Sasanian towns. Baghdad is particularly similar to the Sasanian circular cities of Ardašir I, especially Ardašir Ḵorra, later known as Firuzābād, which according to Ebn al-Faqih was built on the model of Dārābjerd (see DĀRĀB ii). There is evidence in the Islamic architecture of some planimetric solutions and building techniques suggesting that they were derived from pre-Islamic Iranian precedents.

The plan of the Sasanian čahār ṭāq (q.v.) has met with considerable success in Iranian religious architecture. According to some scholars (cf. Finster, p. 91, n. 320), the mosque (of uncertain date) in the village of Yazd-e Ḵᵛāst, on the border between Fārs and Isfahan, was established on a čahār ṭāq (Siroux; see also Smith, p. 106). The Masjed-e Diggarān at Ḵazāra, near Bukhara (11th cent.; Nil’sen, fig. 76), had a similar plan, surrounded by a corridor (on the Islamic čahār ṭāq functioning as emāmzāda, see Huff, 1982; Boucharlat).

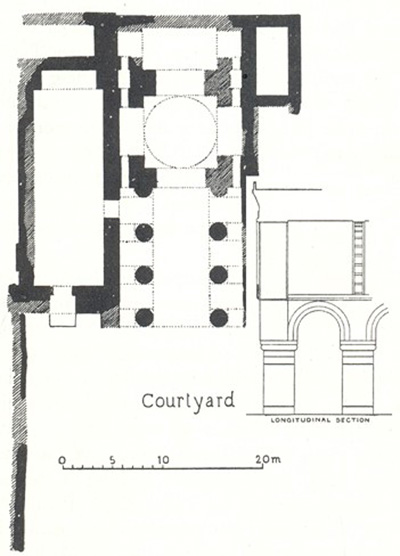

Two buildings in Dāmḡān share similar significant features, namely a Sasanian building at Tepe Hissar/Ḥeṣār (FIGURE 1) and the Tārik-ḵ-āna (a mosque dating from the 8th century, FIGURE 2). The vestibule of the Sasanian building (divided into three aisles) shows two arcades resting on massive round piers and side walls supporting three parallel tunnel-vaults opening into the courtyard, a layout also used in the Tārik-ḵ-āna (Schroeder, p. 934). Both in the Sasanian building and in the Tārik-ḵ-āna, the round piers, constructed of baked bricks, are set vertically and horizontally in alternate courses, without foundations (the same alternate courses are employed also in the Masjed-e Diggarān at Ḵazāra, see Nil’sen, fig. 8); moreover, their diameters are nearly the same. The later Friday Mosque (Masjed-e jāmeʿ) of Nāʾin (dating from ca. 960, Schroeder, p. 935), while possessing narrower round pillars, is entirely covered with stucco decoration like the Sasanian building at Tepe Hissar (for other Iranian mosques deriving from Sasanian architectural prototypes, see Monneret de Villard, pp. 115-16).

Lionel Bier was skeptical of the supposed influence of Sasanian palace architecture on early Islamic architecture. Making reference to Gertrude Bell (pp. 44-51), who in Bier’s words, in her survey of the Sasanian palaces “was sometimes obliged to make analogies with the better-preserved palace at Ukhaidir [Oḵ-ayżer] in Iraq to fill in the missing parts,” Bier sarcastically states: “Put less delicately, it seems to me a fine example of how Sasanian architecture can be influenced by early Islam” (1993, p. 59).

Although the ayvān and the domed chamber are certainly the most important elements of Sasanian architecture surviving in the Islamic context, Bier hesitates to acknowledge a precise correspondence between the continuity of the Sasanian court ceremonial which survived into the Islamic period, and the continuity of form and function of the architectural background, which is not clearly recognizable either in the sources or from the archeological evidence (Bier, 1993, p. 59). Concerning the Umayyad throne complex at Mošattā/Mšattā (dated to 743-44), now a ruined structure in Jordan, Bier states: “neither the triconch nor the pillared hall is known in Sasanian palace architecture ..., the Sasanian audience was connected primarily, if not exclusively, with the iwan hall, with or without a domed chamber in back” (1993, p. 59). With regard to the affinity between the pillared hall/ayvān with a square domed chamber at Tepe Hissar near Dāmˊgān and the ʿEmārat-e Ḵosrow at Qaṣr-e Širin (dated 590-628; FIGURE 3), Bier (1993, p. 60) says: “the Imaret-i Khusraw is a fantasy based partly on Damghan itself, the arrangement at Damghan must remain an anomaly.” However, the same complex is in the dār-al-ʿemāra at Kufa, in Iraq (FIGURE 4; II level, most probably dating back to the reconstruction of Ziād b. Abihi, 670-67), and, as regards the three-aisled hall, Masʿudi (VII, pp. 192-93, rev. ed., V, p. 6), in the 10th century, makes reference to the prototype of Ḥira. The last section of Bier’s study, however, is focused on the most probable methods of transmission of elements from Sasanian to Islamic architecture.

The Sasanian four axial ayvāns fronting a domed room (see the “domed chamber” of the so-called “fire temple” at Bišāpur, 3rd century; Huff, 1993, p. 54; Azarnoush, pp. 84-86) can be found in ʿAbbasid palaces of the 8th and 9th centuries (see the dār-al-ʿemāra of Marv, dated 747-55; FIGURE 5, the most important palaces of Sāmarrāʾ, and probably al-Manṣur’s palace in Baghdad).

The synthesis of the Parthian four ayvāns opening in a courtyard and the Sasanian complex formed by an ayvān and a domed chamber in the back is also used in the Ghaznavid palaces at Laškari Bāzār (11th cent.; Schlumberger, 1978) and Ḡazni (12th cent.; Scerrato, 1959). In the Islamic religious buildings, the four ayvāns opening on a courtyard (with a domed chamber) appear later in Iranian Saljuq architecture.

The triple-ayvān structure of Parthian origin (see some examples in Hatra, Reuther 1938a, fig. 105a, c-d), is clearly recognizable in the Bāb-al-ʿĀmma, the monumental facade of the ʿAbbasid palace called Jawsaq al-Ḵāqāni, built at Sāmarrāʾ by the caliph al-Moʿtaṣem in 836, overlooking the Tigris. The palace of Firuzābād features a particular bayt formed by an ayvān flanked by two rooms that can also be seen in Sarvestān (Bier, 1986, argues convincingly for its 9th-century date); an ayvān with a pair of flanking rooms and a portico of three arches is in the ʿEmārat-e Ḵosrow at Qaṣr-e Širin and the castle of Oḵ-ayżer (2nd half of the 8th cent., FIGURE 6 a-b), located about 50 km south of Karbalāʾ.

While the horseshoe shape of the arches of the transepts and the lower arcade arches of the Omayyad mosque at Damascus (705-15) derive from Syrian Christian architecture, the horseshoe arches of ʿAmmān and Oḵ-ayżer originate from Sasanian prototypes, such as those at Ṭāq-e Gerrā, probably dating back to the Middle Sasanian period, and al-Maʿāriż, a 6th-century residential house at Ctesiphon (Reuther, pp. 509-14).

The two staircase minarets of both mosques at Sāmarrāʾ (9th cent.), as well as the minaret of the mosque of Ebn Ṭulun in Cairo (876-79), derive their forms from the ancient ziggurats (see the famous Iranian example of Čoḡā Zambil, 13th century BC.E.). The ziggurats are at the origin of an important Islamic architectural pattern, namely the stepped elements employed as crenellations. Probably an ancient symbol of the sacred mountain (see Garbini), its iconography originated in the Iranian plateau in the 4th millennium BC.E. (see Elamite seals from Susa, dating back to ca. 3000BC.; Garbini, p. 89, and note 30). This architectural feature was employed for the first time as crenellation of religious buildings (temples, altars, ziggurats) in Assyria in the 2nd-1st millenniumBC.E., retaining its original symbolic value, but possibly with the addition of the apotropaic one as well. From Assyria it spread over the Near East, both as an architectural element and as a symbolic-decorative motif derived from it, and in the Achaemenid Persia as well (crenellations are employed in the Apadāna, at Persepolis; cf. Genito for stepped fire altars; see also the coins of the independent sovereigns of the post-Achaemenid Fars; cf. Callieri). In its original meaning of sacred mountain, it represents the axis mundi and the sovereign as the guarantor of the world order (the rock-cut relief of Bisotun, shows Darius wearing a crenellated crown). During the following Parthian and Sasanian periods stepped elements were employed in similar ways (elements of crowns, crenellations of buildings, components of architectural decoration; cf. Reuther pp. 521-23; fire altars on coins). Stepped elements lost a great deal of their significance in the Islamic period, although they were employed as crenellations in many buildings, beginning with the Umayyad era (see, e.g., the palaces of ʿAmmān and Ḵerbat-al-Mafjar, but also the Great Mosque of Cordoba, and the Fatimid mosques in Cairo). The apotropaic meaning of crenellations was probably preserved only in Yemen. In continuity with the Iranian pre-Islamic past, stepped elements have also been employed, with their symbolic significance, in several products of the early Islamic period, including coins, architectural decoration, various art objects, etc. (see al-Khamis; Fontana, 2003).

The apotropaic function of quadrupeds (felines and horned animals) and birds (birds of prey) placed near the spouts of ewers or other wares is no longer evident in Islamic art crafts, yet these zoomorphic sculptures survive as decorative motifs in metalwork from the Umayyad period (e.g., the so-called “Marwān ewer,” bronze, ca. 750, held at the Museum of Islamic Art, Cairo; [see Sarre]; or the 12th-13th century brass ewers from Khorasan, inlaid with copper and silver; FIGURE 7).

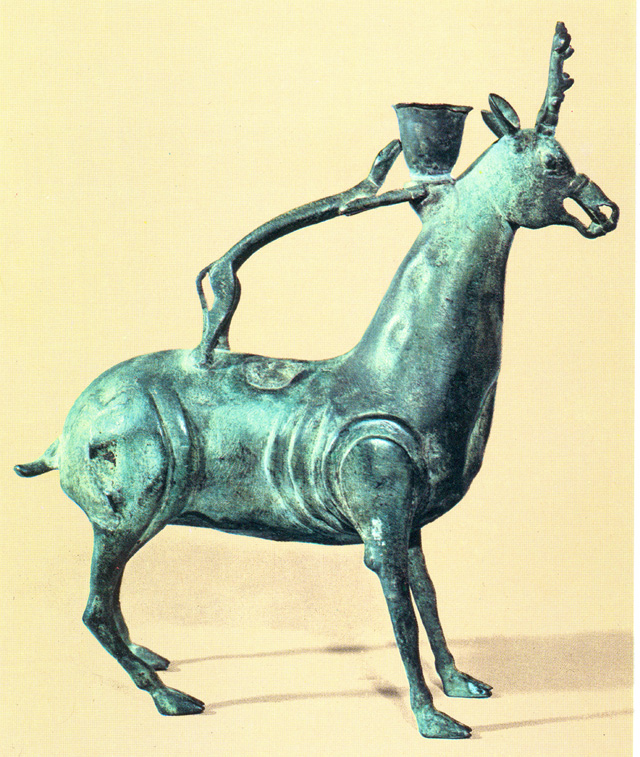

The anthropomorphic or, more frequently, zoomorphic ware shape (askoi) is another pre-Islamic artistic feature that was widely employed in Persia and continued to be used in the Islamic period (for ceramic specimens, see Ettinghausen, 1969; Melikian-Chirvani, 1990, esp. figs. 99-101, pl. IA-B; idem, 1991). Furthermore, the Islamic metalwork produced bronze zoomorphic sculptures that were used as ewers, with a small reservoir that retained its ancient function (see, e.g., the askoi from northern Persia, FIGURE 8, and the bronze deer-shaped ewer, FIGURE 9).

The quintessential example of continuity of techniques, both in manufacture and decoration, are the metal vessels that were produced with similar stylistic features even after the Sasanian Empire had ceased to exist as a political entity, and retained the same shapes and the same iconographic themes, including investitures, audiences, hunts, battle scenes, and animal motifs. In Islamic painting and sculpture we can observe the preservation either of typical Sasanian motifs (Arnold) or of Iranian-Central Asiatic somatic-stylistic features (see the Central Asiatic paintings from Mirān, 3rd century C.E., National Museum, New Delhi; M. Bussagli, ills. pp. 18, 24-25), recognizable, for example, in an Omayyad painting from Qaṣr al-Ḥayr al-Ḡarbi (National Museum, Damascus; Schlumberger, 1986, pl. 37), in a stucco sculpture from Ḵerbat al-Mafjar (Archeological Museum, Jerusalem; Otto-Dorn, color pl. p. 71), and, further, in the famous Sāmarrāʾ paintings (9th cent.).

A major vehicle of transmission of Iranian pre-Islamic elements in the Islamic art was iconography (Grube, 2005a, p. 24, ns. 74 and 88; idem, 2005b, pp. 270-72), such as the so-called “flying gallop” (see a Parthian painting from the mithreum of Dura Europos, 2nd century C.E., Musée du Louvre, Paris, and a Sasanian painting from Susa, 4th century, in Ghirshman, figs. 49-50, 224), frequently combined, in the Sasanian period, to a fluttering ribbon (see, e.g., the Sasanian 5th-cent. plate in gilded silver, The Metropolitan Museum of Art, New York, inv. No. 34.33; see also the hunting scene in Splendeurs des Sassanides, pl. p. 189), as we can see in a floor painting from Qaṣr al-Ḥayr al-Ḡarbi, 724-727 (FIGURE 10). Brief mention should also be made to other iconographic themes and their diffusion (see Rosen-Ayalon), such as the senmurv (see Harper; Schmidt), the male or female figure lifted by an eagle (see Grube and Johns, pp. 244-47), and popular legendary episodes such as the hunt of the Sasanian king Bahrām Gōr with his slave (Simpson; Fontana, 1986, idem, 2000; for other important iconographies, see Ettinghausen 1969; idem 1972).

Survival of Iranian pre-Islamic elements in Islamic art can be traced up to the Safavid, Qajar and Pahlavi periods, in architecture, iconography, stone relief, and a variety of decorative arts (see Huff 1971, pp. 164 ff.; Melikian-Chirvani 1990; idem, 1991; idem, 1996; Lerner 1980; idem, 1998; Luschey-Schmeisser; Grube, p. 24, ns. 74, 88, and pp. 270-72).



Bibliography:

Thomas W. Arnold, Survival of Sasanian and Manichaean Art in Persian Painting, Oxford, 1924.

Massoud Azarnoush, The Sasanian Manor House at Hājīābād, Iran, Monografie di Mesopotamia 3, Florence, 1994.

Gertrude Lowthian Bell, Palace and Mosque at Ukhaiḍir: A Study in Early Mohammadan Architecture, Oxford, 1914.

Lionel Bier, Sarvistan: A Study in Early Islamic Architecture, Monographs of the fine arts 41, University Park, London, 1986.

Idem, “The Sasanian Palaces and Their Influence in Early Islam,” Ars Orientalis 23, 1993, pp. 57-66.

Rémy Boucharlat, “Chahar Taq et temple du feu sasanide: quelques remarques,” in Jean-Luis Huot, Marguerite Yon, and Yves Calvet, eds., De l’Indus aux Balkans, recueil à la mémoire de Jean Deshayes, 1985, pp. 461-78.

Mario Bussagli, Central Asian Painting from Afghanistan to Sinkiang, London, 1978.

Pier Francesco Callieri, “A proposito di un’iconografia monetale dei dinasti del Fārs post-achemenide,” OCNUS: Quaderni della Scuola di Specializzazione in Archeologia 6, 1998, pp. 25-38.

Keppel Archibald C. Creswell, A Short Account of Early Muslim Architecture, revised and supplemented by James W. Allan, Aldershot, 1989.

Curatola Giovanni, ed., Eredità dell’Islam: arte islamica in Italia, Milan, 1993.

Ebn al-Faqih, Moḵ-taṣar ketāb al-boldān, ed. Mikaël J. de Goeje, BGA 5, Leiden, 1967.

Richard Ettinghausen, “A Case of Traditionalism in Iranian Art,” in Oktay Aslanapa and Rudolf Naumann, eds., Forschungen zur Kunst Asiens: In Memoriam Kurt Erdmann, 9 September 1901-30 September 1964, Istanbul, 1969, pp. 88-110.

Idem, From Byzantium to Sasanian Iran and the Islamic World: Three Modes of Artistic Influence, The L. A. Mayer Memorial Studies in Islamic Art and Archaeology 3, Leiden, 1972.

Barbara Finster, Frühe iranische Moscheen vom Beginn des Islam bis zur Zeit Salğuqischer Herrschaft, AMI 19, Berlin, 1994.

Maria Vittoria Fontana, La leggenda di Bahrām Gūr e Āzāda: Materiale per la storia di una tipologia figurativa dalle origini al XIV secolo, Istituto Universitario Orientale, Dipartimento di Studi Asiatici, Series Minor 24, Naples, 1986.

Eadem, “Ancora sulla caccia di Bahrām Gūr e Āzāda,” in Haft Qalam: Cento pagine in onore di Bianca Maria Alfieri da parte dei suoi allievi, Naples, 2000, pp. 15-37.

Eadem, “Albero-croce-albero nell’iconografia islamica,” in Rudi Favaro, ed., L’albero della Croce prima, dopo, nell’Esilio e nell’Islam, Suppl. to Studi dell’Oriente Cristiano 7/2, Rome, 2003, pp. 171-91.

Eadem, “La croce nell’iconografia islamica”, in Boris Ulianich, ed., Atti del Convegno Internazionale di studio su “La croce: Iconografia e interpretazione (secoli I-inizio XVI),” Naples, forthcoming. Giovanni Garbini, “The Stepped Pinnacle in Ancient Near East,” East and West 9, 1958, pp. 85-91.

Bruno Genito, “Altari a gradini nell’Iran antico,” in Gherardo Gnoli and Lionello Lanciotti, eds., Orientalia Iosephi Tucci Memoriae Dicata, Serie Orientale Roma 56/2, 3 vols., Rome, 1987, pp. 475-86.

Roman Ghirshman, Iran. Parthes et Sassanides, Paris, 1962; tr. Stuart Gilbert and James Emmons as Persian Art in the Parthian and Sassanian Dynasties: 249BC.-A.D. 651, New York, 1962.

Oleg Grabar, The Formation of Islamic Art, New Haven and London, 1973.

Ernst J. Grube, “Iconography in Islamic Art,” in Robert Hillenbrand, ed., Image and Meaning in Islamic Art, London, 2005a, pp. 13-33.

Idem, “A Bibliography of Iconography in Islamic Art,” ibid., 2005b, pp. 159-320.

Ernst J. Grube and Jeremy Johns, The Painted Ceilings of the Cappella Palatina, Suppl. to Islamic Art I, Genoa and New York, 2005.

Prudence O. Harper, “The Senmurv,” Bulletin of the Metropolitan Museum of Art 20, 1961-62, pp. 95-101.

Dietrich Huff, “Qalʿa-ye Dukhtar bei Firuzabad: Eine Beitrag zur sasanidischen Palastarchitektur,” AMI, N.S. 4, 1971, pp. 127-71.

Idem, “Das Imamzadeh Sayyid Husain und E. Herzfelds Theorie über den sasanidischen Feuertempel,” Studia Iranica 11, 1982, pp. 197-212.

Idem, “Architecture sassanide,” in Splendeur des Sassanides: l’empire perse entre Rome et la Chine (224-642), Catalog of an exhibition held at the Musées royaux d’art et d’histoire, Brussels, 1993, pp. 45-61.

Ulrike al-Khamis, “The Iconography of Early Islamic Bronze Ewer Reexamined,” Muqarnas 15, 1998, pp. 9-19.

Fisk Kimball, The Sāsānian Building at Dāmghān (Tepe Ḥeṣār),” in Arthur Upham Pope and Phyllis Ackerman, eds., A Survey of Persian Art, 3rd ed., 16 vols., Tehran, 1977, II, pp. 579-83.

Judith A. Lerner, “Three Achaemenid Fakes’: A Reevaluation in the Light of 19th Century Iranian Architectural Sculpture,” Expedition 22/2, 1980, pp. 5-16.

Eadem, “Sasanian and Achaemenid Revivals in Qajar Art,” in Vesta Sarkhosh Curtis, Robert Hillenbrand, and M. J. Rogers, eds., The Art and Archaeology of Ancient Persia: New Light on the Parthian and Sasanian Empires, London and New York, 1998, pp. 162-67.

Ingeborg Luschey-Schmeisser, “Sirene auf dem Lebensbaum: Nachleben alter Motive auf einem früh-qadscharischen Qalamkār,” AMI, N.S. 21, 1988, pp. 241-53.

color="Black"> Abu’l-ḤḤasan ʿAli Masʿudi, Moruj al-ḏahab wa maʿāden al-jawhar, ed. and tr. Charles Barbier de Meynard and Abel Pavet de Courteille as Maçoudi,Les prairies d’or (Murūj al-dhahab), 9 vols., Paris, 1861-77; rev. ed. by Charles Pellat, text, 7 vols., Beirut, 1966-79, tr., 3 vols., Paris, 1962-71.

Assadullah Souren Melikian-Chirvani, “From the Royal Boat to the Beggar’s Bowl,” Islamic Art 4, 1990, pp. 3-111.

Idem, “Les taureaux à vin et les cornes à boire de l’Iran islamique,” in Paul Bernard and Frantz Grenet, eds., Histoire et cultes de l’Asie centrale pre-islamique: sources écrites et documents archéologiques, actes du Colloque international du CNRS, Paris, 22-28 novembre 1988, Paris, 1991, pp. 101-25.

Idem, “The Iranian Wine Horn from Pre-Achaemenid Antiquity to the Safavid Age,” Bulletin of the Asia Institute 10, 1996, pp. 85-139.

Ugo Monneret de Villard, L’arte iranica, Verona, 1954.

Vladimir Anatol’evich Nil’sen, Monumental’naya Architektura Bucharskogo Oazisa XI-XII vv.:k voprosu o voznikovenii srednevekovoi arkhitektury v Srednei Azii, Tashkent, 1956.

Katharina Otto-Dorn, Kunst desIslam, Baden-Baden, 1964.

Oscar Reuther, “Parthian Architecture: A. History,” in Arthur Upham Pope and Phyllis Ackerman, eds., A Survey of Persian Art, 3rd ed., 16 vols., Tehran, 1977, I, pp. 411-44.

Idem, “Sāsānian Architecture: A. History”, in Arthur Upham Pope and Phyllis Ackerman, eds., II, pp. 493-578.

Myriam Rosen-Ayalon, “Themes of Sasanian Origin in Islamic Art,” Jerusalem Studies in Arabic and Islam 4, 1984, pp. 69-80.

Friedrich Sarre, “Die Bronzekanne des Kalifen Marwān II. im Arabischen Museum in Kairo,” Ars Islamica 1, 1934, pp. 10-14.

Umberto Scerrato, “The First Two Excavation Campaigns at Ghazni, 1957-1958: Summary Report on the Italian Archaeological Mission in Afghanistan,” East and West 10, 1959, pp. 23-55.

Idem, Metalli islamici, Milan, 1966.

Daniel Schlumberger, Lashkari Bazar, une résidence royale ghaznévide et ghoride: 1 A) L’architecture, Mémoires de la Délégation archéologique française en Afghnistan 18, Paris, 1978.

Idem, Qasr el-Heir el Gharbi: textes et planches, Bibliothīque Archéologique et Historique 120, Paris, 1986.

Hanns-Peter Schmidt, “The Senmurv: Of Birds and Dogs and Bats,” Persica 9, 1980, pp. 1-85.

Wilfried Seipel, ed., 7000 Jahre persische Kunst: Meisterwerke aus dem Iranischen Nationalmuseum in Teheran, Kunsthistorisches Museum, 22. November 2000 bis 25. März 2001, Vienna, 2000.

Marianna Shreve Simpson, “Narrative Allusion and Metaphor in the Decoration of Medieval Islamic Objects,” in Marianna Shreve Simpson and Herbert L. Kessler, eds., Pictorial Narrative in Antiquity and in the Middle Ages, Papers read at a symposium held in Baltimore, March 16-17, 1984, Center for Advanced Study in the Visual Arts, Symposium Series 4, Washington, D. C., 1985, pp. 131-49.

Eric Schroeder, “Islamic Architecture C: Standing Monuments of the First Period,” in Arthur Upham Pope and Phyllis Ackerman, eds., A Survey of Persian Art, 3rd. ed., 16 vols., Tehran, 1977, III, pp. 930-66.

Maxime Siroux, “La Mosquée Djuma de Yezd-i-Khast,” Bulletin de l’Institut français d’archéologie orientale 44, 1947, pp. 101-18.

Myron Bement Smith, “Three Monuments at Yazd-i Khwast,” Ars Islamica 7, 1940, pp. 104-6.

W. Luke Treadwell, “The 'Orans' drachms ibn Marwān and the Figural Coinage of the Early Marwanid Period,” in Jeremy Johns, ed., Bayt al-Maqdis: Jerusalem and Early Islam, ed. Jeremy Johns, Oxford Studies in Islamic Art 9/2, Oxford, 1999, pp. 223-69.

Estelle Whelan, “The Origins of the miḥrāb mujawaff: A Reinterpretation,” IJMES 18, 1986, pp. 205-23.

(Maria Vittoria Fontana)

Originally Published: December 15, 1986

Last Updated: August 15, 2011
