YAḴČĀL

Iranian ice-houses were facilities for the storage of solid ice, ensuring that ice was available for local distribution during the summer; they were not used for refrigerating foodstuff.  In its simplest form, the yaḵčāl was a storage pit dug in the ground, and covered with straw, rush, and earth for protection and insulation against sunshine and heat.



YAḴČĀ L (lit. “ice pit”) and YAḴDĀN (lit. “ice container”), a building for storing blocks of ice or, very rarely, compressed snow, which are collected in the winter for use in the summer.  Until the early 20th century, yaḵdān was more common than yaḵčāl (see the respective entries in Dehḵoda), and in Khorasan and Kerman province, yaḵdān is nowadays often used as a synonym of yaḵčāl.  Until the 1960s, when mechanical, electrical- or kerosene-driven refrigeration became available in most of Iran, the yaḵčāl was one of the main features of Iranian vernacular architecture, reflecting adaptation to the dry conditions and extreme temperatures of the semi-arid climate of the Iranian plateau (see DESERT), in particular its scorching summer heat.  Nowadays an ice-house is often called yaḵčāl-e ḡadimi o-sonnati, and up to 2005 the Iranian Cultural Heritage Organization (ICHO) had registered 56 ice-houses, four of which date to the Safavid period (Pāzuki and Šādmehr, pp. 91, 125, 330, 457).

Use and typology.  Iranian ice-houses were facilities for the storage of solid ice, ensuring that ice was available for local distribution during the summer; they were not used for refrigerating foodstuff.  In its simplest form, the yaḵčāl was a storage pit dug in the ground, and covered with straw, rush, and earth for protection and insulation against sunshine and heat.  Such pits seem to have been in use since the 1st millennium BCE, if not earlier.  There is, however, no archeological or textual evidence as to how in Iran simple pits developed into ice-houses.  Some pits were covered with their own domes and thus became independent buildings, while others were located in the cellars of larger buildings.  Walled ice-houses had open pits whose south side was protected by tall shading walls, often extending to the pits’ east and west sides as well.

Many yaḵčāl relied on shallow, open-air basins (yaḵband) for on-site ice production.  During the frosty winter months, a thin layer of water, about 5-10 cm, was poured into the open-air basins, where it would freeze overnight.  The next day a second thin layer of water was poured atop the previous night’s ice.  This process was repeated until the ice in the basin had reached a height of about 50 cm.  The thick layer of solid ice was chopped into blocks and brought inside the yaḵčāl for long-term storage.  Afterwards the process began anew with pouring the first thin layer of water into the open-air basins.  On-site ice production was employed whenever ice could not be easily obtained from nearby mountains, and the yaḵčāl depended for its water (see ĀB iii. The Hydrology and Water Resources of the Iranian Plateau) supply on a system of underground irrigation canals (qanāt, kāriz) and water reservoirs (āb-anbār).

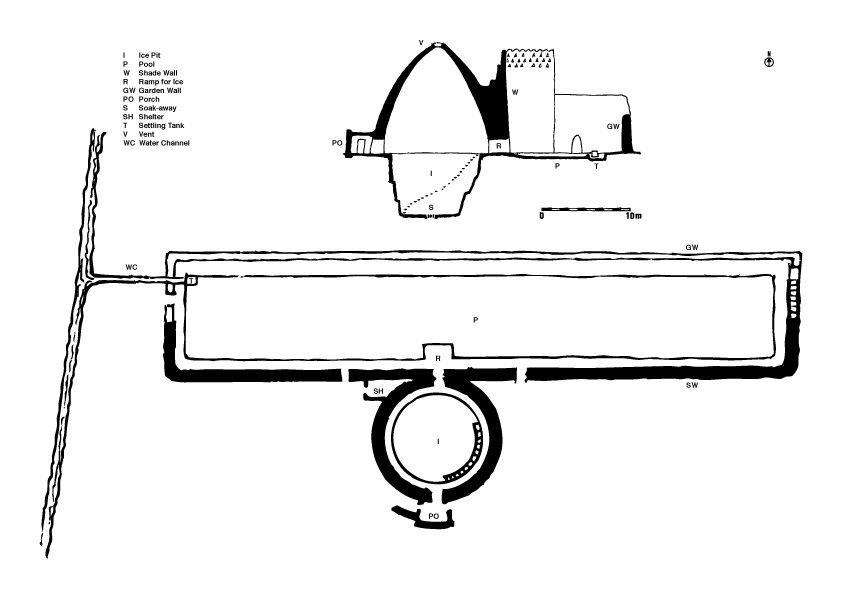

Ice-houses took maximum advantage of the environmental conditions, in particular soil and climate, of the Iranian Plateau.  The excavated earth was used for the production of sun-dried mud bricks, which, together with mortar and plaster, were used for the construction of domes, shading walls, and water-supply channels (Wulff, p. 108).  The buildings (Figure 1), as well as their operation, were completely organic, using only on-site raw materials, water, and manual labor.

Domed ice-house complexes were an important part of Iranian vernacular architecture, which includes residential dwellings, bazaars (bāzār), bathhouses, windmills and watermills (see āsiā or āsiāb “mill”), fortresses, pigeon-towers, wind-towers (bādgir), and water reservoirs.  Although domed water reservoirs often resemble domed yaḵčāl, water reservoirs are always built of fired bricks, which can resist the humid environment, while ice-houses are built from mud bricks.  Water reservoirs have an external staircase leading down to an underground water tap at the tank’s bottom and are occasionally equipped with wind-towers to ensure the ventilation of the dome’s interior.  In many cases abandoned water reservoirs were used for ice storage (ʿEnāyat-Allāh, p. 182).  Yet yaḵčāl could never be used as water reservoirs, because ice-houses can only accommodate humidity or water at the bottom of the ice pit, where melted water can seep into the ground.

Rural communities needed to provide significant resources to maintain their man-made water supply systems, such as qanāt (see KĀRIZ iii. Economic and Social Contexts), and to ensure an equitable distribution of its water.  Wherever qanāts were owned by an endowment (waqf), the dependent ice houses were often co-operative ventures.  But ice-houses were also operated by individual businessmen and landowners.  In some villages there were celebratory festivals when the yaḵčāl was filled with ice in the winter and when it was opened for ice distribution in the summer, indicating the great importance of ice-houses for their communities until the second half of the 20th century.

Literary evidence.  In writings from the Kingdom of Mari on the upper Euphrates, dated to the 18th century BCE, there are the first references to an ice-house (Assyrian bīt šurīpi; see CAD XVII/3, 1992, pp. 348-49 s.v. “šurīpu”).  For these ice-houses, blocks of ice were transported from nearby mountains to the court, and their main function seems to have been the cooling of the king’s wine.  These ice-houses were probably cellars inside large palace structures, and not separate buildings.

Since Greek sources (in particular Polybios, 10.28) suggest that on the Iranian plateau qanāts were known toward the end of the Achaemenid period, in the second half of the 4th century BCE, Pierre Briant (pp. 33-38) has suggested that underground irrigation canals were invented in the 1st millennium BCE  and that in the 4th century BCE their use gained momentum when Achaemenid rulers granted tax relief for water supply systems.  Although there is neither archeological nor textual evidence, it seems probable that the development of water reservoirs and ice-houses followed the expansion of settlements that relied on irrigation systems for their agriculture.

Athenaeus (3rd century CE) recounts a story by Chares of Mitylene (4th century BCE) about Alexander the Great (356-323 BCE) using earthen pits for the storage of snow during his Indian campaign (Deipnosophistae, 3.124c).  It is tempting to speculate that Alexander’s army picked up this refrigerating technique when passing through northern Iran during the year 330 BCE.

With regard to Islamic Iran, ʿAli Akbar Dehḵoda refers in the entry on “yaḵdān” in the Loḡat-nāma to an anecdote from the Anis al-ṭālebin by Salāḥ-al-Din b. Mobārak Boḵāri (14th century); in the anecdote, foqqāʿ, an effervescent drink, is kept in an ice-house.  The popular dessert fāluda or pāluda (see Dehḵoda s.v. “pāluda”; Lane, p. 2439, s.v. “fāluḏ”) illustrates the uses of ice in food long before the second half of the 20th century.

In the 17th century, when the first ice-houses were built in Europe, European travelers mentioned for the first time ice-houses in Iran.  For example, John Fryer (d. 1733) reported that he saw ice-houses outside Shiraz (p. 250 = letter V, chap. IV).  But in contrast to Iran, European ice-houses were used for preserving drinks and foodstuff in cold storage.  They were outbuildings of castles and manor houses or belonged to commercial building complexes, such as butchers, dairies, and inns; their ice was usually taken from nearby moats and lakes.

Recently, Vahid Qobādiān (p. 322) observed that walled or underground ice-houses usually belonged to commercial enterprises in large urban communities near the desert.  There were formerly, for example, more than 80 ice-houses in Tehran and more than 40 in Isfahan, and ice-making basins belonged to all of these.

Survey of Iranian ice-houses.  Between 2007 and 2009 the author identified, registered, and mapped the sites of 129 ice-houses on the Central Plateau, especially on the fringes of the Dašt-e Kavir and the Dašt-e Lut (Jørgensen).  On 104 sites, there were still remnants of the physical structures, and all three yaḵčāl types were represented: 111 domed, 12 underground, and 6 walled.  In 58 instances, the domed ice-houses were ice-making basins, because ice could be easily obtained from the nearby Alborz  mountains. The other 53 domed ice-houses were halfway between the large deserts and the Zagros mountains, and depended for their water supply on qanāts.  Of the 129 surveyed sites, only 47 were also included in the 2005 ICHO register (Pāzuki and Šādmehr), which had counted a total of 56 ice-houses in all of Iran.

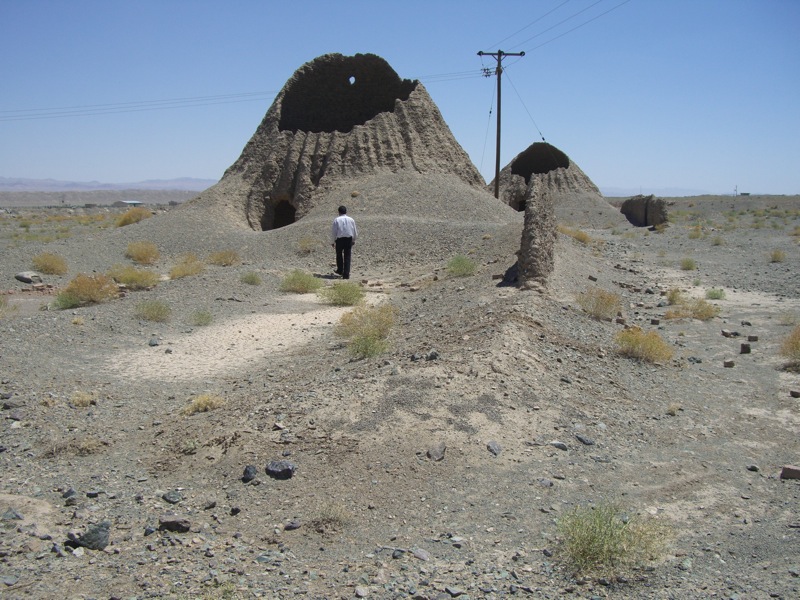

Preservation initiatives have mostly neglected the traditional industrial mud-brick architecture (Figure 2), and the few remaining ruins may soon disappear.  Only about 10 percent of the registered domed ice-houses have been partially restored.  In general, preservation measures focus on the dome proper, and occasionally extend to the associated shading walls.  But they never include the ice-making basins and water-supply channels.

The most spectacular domed ice-houses can still be found in central Yazd province.  At the outskirts of Abarquh the three domes are still visible.  Another domed ice-house structure has been preserved at the former road station and caravansary of Meybod, which is a popular tourist destination.  These four domes are all 18 meters tall, and their diameters range 20-23 meters.

Bibliography:

For images of ice-houses in Iran and Afghanistan, search the digital library of ArchNet (free access on the Internet at: https://archnet.org).

Elizabeth Beazley and Michael Harverson, “Einheimische Architektur,” in Irans Erbe in Flugbildern von Georg Gerster, eds. Ali Mousavi and David Stronach, Mainz, 2009, pp. 156-83, esp. 158-161 and fig. 101 on p. 165.

Elizabeth Beazley, Michael Harverson, and Susan Roaf, Living with the Desert: Working Buildings of the Iranian Plateau, Warminster, Eng., 1982.

Pierre Briant, “Polybe X,28 et les qanats: Le témoignage et ses limits,” in Irrigation et drainage dans l’antiquité: Qanats et canalisations souterraines en Iran, en Egypte et en Grèce – Séminaire tenu au Collège de France, ed. P. Briant, Paris, 2001, pp. 15-40.

[CAD] The Assyrian Dictionary of the Oriental Institute of the University of Chicago, vol. I/1-, Chicago, 1956-.

John Fryer, A New Account of East-India and Persia in Eight Letters, London, 1698.

Peter James and Nick Thorpe, Ancient Inventions, New York, 1994.

Hemming Jørgensen, Ice Houses of Iran: Where, How, Why, Costa Mesa, Calif., 2012; orig., Ice-houses of Iran: An Examination of the Evidence, Ph.D. diss., University of Copenhagen, 2010; the dissertation includes a CD Rom with an ice-house database.

Nāṣer Pāzuki and ʿAbd-al-Kārim Šādmehr, Āṯār-e ṯabt šoda-ye Irān dar fehrest-e āṯār-e melli, Tehran, 2005.

Vahid Qobādiān (Ghobadian), Bar-rasi-e eqlimi-e sonnati-e Irān, Tehran, 1994.

Reżā ʿEnāyat-Allāh et al., Āb o fann-e ābyāri dar Irān-e bāstān, Tehran, n. d. [ca. 1970?]; publication of the Vezārat-e Āb o Barq.

Hans E. Wulff, The Traditional Crafts of Persia: Their Development, Technology, and Influence on Eastern and Western Civilizations, Cambridge, Mass., 1966.

(Hemming Jørgensen)
